Class of Operation: aR
Rating:
Amps: 100-400A
Volts: 1500Vdc
Interrupting Rating: 250kA@1500Vdc
Standards/Approvals for Reference:
• Standard: GB13539/IEC60269; • CE,UR; • RoHS compliant.
Typical Applications: It is used for short circuit protection of energy storage device, UPS center, charging system, inverter, charging pile. This series of fuses are cured by the world’s most advanced curing technology, which effectively improves the vibration resistance and high current breaking ability.
Cross-section: 59x59mm(size 2)

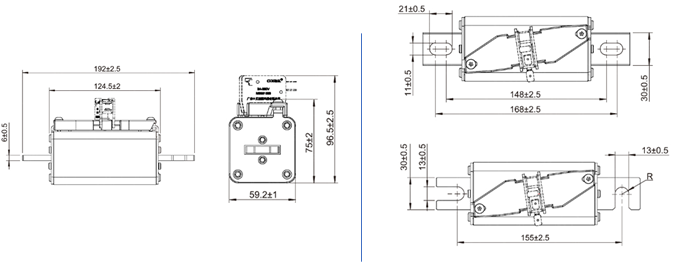

Dimensions(mm)
Catalogue Numbers
Items | Catalogue Numbers | Electrical Characteristics | Bolt size | Installation torque （N.m） | |||||
Rated Current RMS-Amps | I²t (A²Sec) | Watts Loss | |||||||
Bolted blade | DIN blade | Pre-arc | Clearing at 1500V | Bolted blade | DIN blade | ||||
1 | *ESH5545 | *ESH5556 | 100 | 14451 | 41907 | 21 | M10 | 24.0±3.0 | 42.0±4.0 |
2 | *ESH5546 | *ESH5557 | 125 | 23888 | 69275 | 25 | M10 | 24.0±3.0 | 42.0±4.0 |
3 | *ESH5547 | *ESH5558 | 160 | 41880 | 121451 | 35 | M10 | 24.0±3.0 | 42.0±4.0 |
4 | *ESH5548 | *ESH5559 | 200 | 46080 | 133632 | 45 | M10 | 24.0±3.0 | 42.0±4.0 |
5 | *ESH5549 | *ESH5560 | 250 | 77875 | 225838 | 60 | M10 | 24.0±3.0 | 42.0±4.0 |
6 | *ESH5550 | *ESH5561 | 315 | 133171 | 386196 | 75 | M10 | 24.0±3.0 | 42.0±4.0 |
7 | *ESH5551 | *ESH5562 | 350 | 223027 | 646779 | 90 | M10 | 24.0±3.0 | 42.0±4.0 |
8 | *ESH5552 | *ESH5563 | 400 | 288700 | 834500 | 100 | M10 | 24.0±3.0 | 42.0±4.0 |
