Description
The 1035 Brick Fuse is a small square surface mount fuse that is designed to enable compliance with the RoHS directive. This product is fully compatible with lead-free solder alloy and higher temperature profiles associated with lead-free assembly.
1035.01V series surface mount，surge resistant fuse，offers over-current protection for a wide range of telecom applications.
This high-current SMD fuse is a small, square, surface mount fuse that is designed as supplemental over current protection for high-current circuits in various applications.
Catalog Symbol | Size | Rated Voltage(V) | Ampere Range | Agency | Dimensions | Material | Class of operation | |
AC | DC | |||||||
1035.01L | 1035 | 300/250 | / | 0.5-10A | JDYX2.E365879 | 10*3.2*3.2mm | Body: Ceramic Terminal: Gold/Silver over-plated with Brass | FAST ACTING |
1035.01E | 1035 | 250/125 | 125 | 0.5-6.3A | JDYX2.E365879 | 10*3.2*3.2mm | Body: Ceramic Terminal: Gold/Silver over-plated with Brass | FAST ACTING |
1035.01T | 1035 | 300/250 | 75/32 | 0.2-1.25A | JDYX2.E365879 | 10*3.2*3.2mm | Body: Ceramic Terminal: Gold/Silver over-plated with Brass | FAST ACTING |
1035.02 | 1035 | 250 | 125/72/60/58 | 12-40A | JDYX2.E365879 | 10*3.2*3.2mm | Body: Ceramic Terminal: Gold/Silver over-plated with Brass | FAST ACTING |
1035 FF | 1035 | / | 72/60/32 | 20-60A | JDYX2.E365879 | 10*3.2*3.2mm | Body: Ceramic Terminal: Gold/Silver over-plated with Brass | FAST ACTING |
Applications
▷ Power Supplies ▷ Net working and other electronics products ▷ AC/DC power adaptor ▷ Telecom equipment system power
▷ Portable system built-in AC/DC converter ▷ Lighting System ▷PC server and Telecom systems ▷LCD TV inverter boards DC input protection
▷ High end servers / Blade computing ▷ Base station power supply ▷ Voltage regulator module ▷Cooling fan system for PC Server
▷Battery Management System (Industrial Tools) ▷ ATCA applications for cloud computing ▷Uninterruptible Power Supply (UPS)/3-Phase
▷ Blade Servers ▷Lithium Battery，Rechargeable ▷ LCD TV inverter boards DC input protection ▷Routers Bicycle

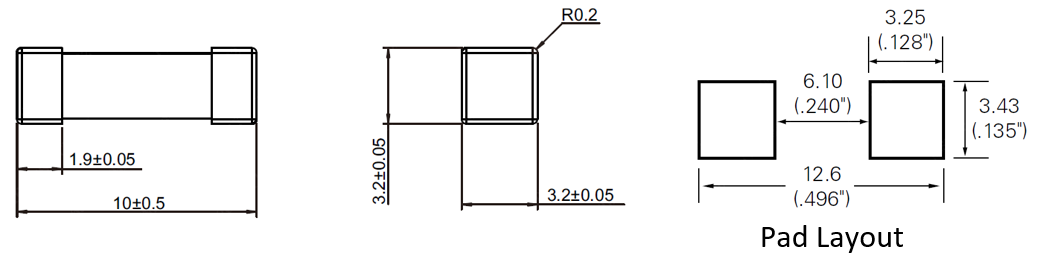

Dimensions(mm)
