GPV6035~6042 1500Vdc Size 3
Class of Operation: gPV
Rating:
投乐彩Amps: 160-630A
Volts: 1500Vdc
Interrupting Rating: 50kA@1500Vdc
Standards/Approvals for Reference:
² IEC 60269/GB 13539
² CE
² RoHS compliant
Description:投乐彩 A range of round body high speed fuse link for heavy rail applications as main electrical feeders, Auxiliary feed, pantograph high wire.
Cross-section投乐彩: size 3 (73x73mm)
Dimensions(mm)

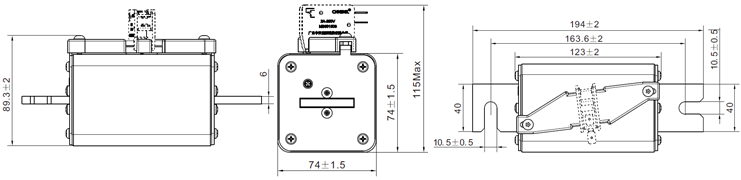

DIN 43 653, GPV6035-6044

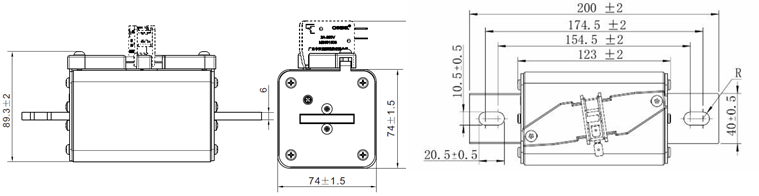

UL Style *GPVLFFE-160B~*GPVLFFE-630B
Catalogue Numbers
Items | Catalogue Numbers | Electrical Characteristics | Standard recommended bolts | Installation torque | |||||
Rated Current RMS-Amps | I²t (A²Sec) | Watts Loss | |||||||
DIN 43 653 | UL Style | ||||||||
Pre-arc | Clearing at 1500V | ||||||||
1 | GPV6035 | GPVLFFE-160B | 160 | 12800 | 52480 | 17.7 | M10 | 24±3.0(N.m) | |
2 | GPV6036 | GPVLFFE-200B | 200 | 18432 | 77414 | 23.0 | M10 | 24±3.0(N.m) | |
3 | GPV6037 | GPVLFFE-250B | 250 | 32768 | 140902 | 27.0 | M10 | 24±3.0(N.m) | |
4 | GPV6038 | GPVLFFE-315B | 315 | 56448 | 248371 | 32.6 | M10 | 24±3.0(N.m) | |
5 | GPV6039 | GPVLFFE-350B | 350 | 73728 | 331776 | 35.3 | M10 | 24±3.0(N.m) | |
6 | GPV6040 | GPVLFFE-400B | 400 | 100352 | 461619 | 39.5 | M10 | 24±3.0(N.m) | |
7 | GPV6041 | GPVLFFE-450B | 450 | 139392 | 655142 | 42.4 | M10 | 24±3.0(N.m) | |
8 | GPV6042 | GPVLFFE-500B | 500 | 191702 | 786533 | 47.2 | M10 | 24±3.0(N.m) | |
9 | GPV6043 | GPVLFFE-550B | 550 | 266342 | 612588 | 85.0 | M10 | 24±3.0(N.m) | |
10 | GPV6044 | GPVLFFE-630B | 630 | 319000 | 732000 | 100.0 | M10 | 24±3.0(N.m) | |
